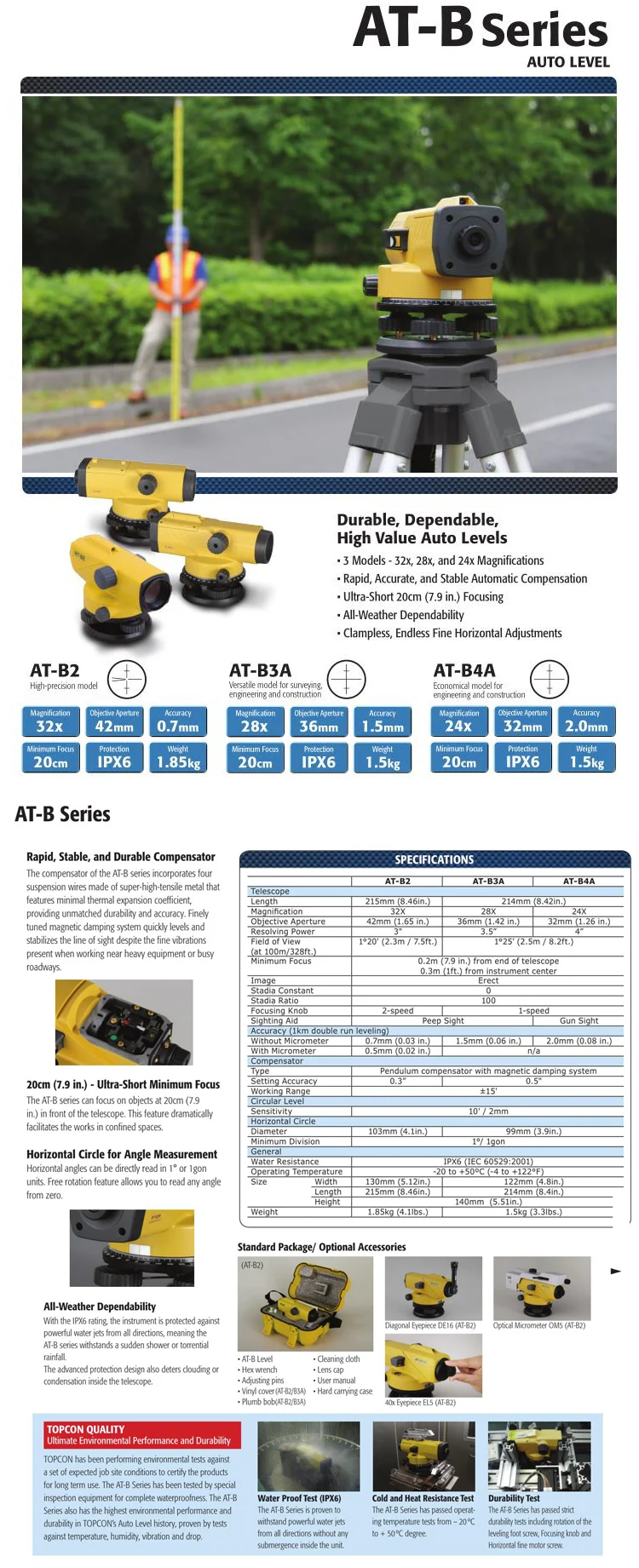

Topcon 32x Automatic Level AT-B2 - 2110220B0 with Tripod and Levelling Staff

The Topcon AT-B2 is Topcon's high-precision automatic level. It features 32X magnification, a large 42mm objective aperture for increased light gathering, and an accuracy of 0.7mm (0.03") per 1km double run leveling.

It has a completely waterproof telescope (IPx6) and is, therefore, ideal for all kinds of wet-surveying operations, in light rain or tunnels.

The AT-B2 can focus on objects as close as 20cm (7.9 in.) which is suitable for close range work carried out by builders and contractors.

The compensator of AT-B series levels incorporate four suspension wires made of extremely high-tensile metal that features minimal thermal expansion coefficient, providing unmatched durability and accuracy even in the harshest environmental conditions.

Its finely tuned magnetic damping system quickly levels and stabilizes the line of sight despite the fine vibrations present when working near heavy equipment or busy roadways.

Each instrument is calibrated by our factory-trained technicians before it ships to ensure accuracy. This means adjusting both the reticle and the bubble.

Remember, no matter how good or expensive your level is, if it's out of adjustment, your level won't shoot level!

The Topcon AT B2 Automatic Level allows surveyors and construction professionals to perform highly accurate leveling, angle, height, as well as distance measurements.

This optical instrument has 32x magnification, 1/32 inch accuracy, and a built-in compensator that stabilizes the line of sight despite the fine vibrations caused by heavy equipment on the jobsite.

Focus Range

Featuring a focusing range of 7.9 inches in front of the telescope, this Topcon site level facilitates working in confined spaces. With an internal magnetic dampened compensator, this survey and construction tool levels the line of site within the range of ±15 arc-minutes and an accuracy of 0.3 arc-second.

Optional Accessories

For working in extremely confined spaces, this auto level allows you to use an optional diagonal eyepiece, an optical micrometer , a light pack for leveling in low light conditions, and a 40x eyepiece for improved accuracy and magnification.

2-Speed Focusing Knob

With the AT-B2 automatic level, the rotation speed of the focusing knob is automatically switched between coarse and fine, allowing for quick and precise focusing.

In addition, the fine horizontal knobs located on both sides of the instrument can be operated without clamping, speeding up aiming procedures to the staff and other objects.

Horizontal Circle

Horizontal angles can be directly read in degrees or gon and can be viewed just below the eyepiece. Protected against dirt and scratch, the horizontal circle features free rotation that enables you to read any angle from zero.

The ATB2 also allows you to easily view the circular level through its integrated pentagonal prism without changing your eye height.

Water Resistant

With the IPx6 rating, the AT-B2 auto level is protected against powerful water jets from all directions. The advanced protection design not only prevents water from entering the instrument, but also deters clouding or condensation inside the telescope.

This Topcon automatic level comes with a hard carrying case, plumb bob, hex wrench, adjusting pins, vinyl cover, cleaning cloth and lens cap.

Specifications

Standard Package

:
